Building the Future: Heavy-duty Metal Trusses
Metal trusses provide exceptional strength and durability, making them ideal for roofs, bridges, industrial applications, and stage designs.
Features of Shelter Structures' Metal Truss
Supported Large Span Structure
Metal truss offers large-span structure support with high load-bearing capacity while minimizing intermediate supports, and maximizing open space. Lightweight yet strong, it is customizable in shape and size, offering aesthetic flexibility and durability. This makes it ideal for various architectural applications.
Versatile for Various Scenario
The adaptable design of metal trusses allows for various configurations, enabling builders to customize structures to meet specific project requirements. Whether used in residential buildings, commercial spaces, or industrial facilities, metal trusses can support strong support.
Durability
Metal roof trusses are resistant to rot, mold, and pests, making them a durable structure choice. Unlike wood, they withstand environmental factors and infestations. This ensures a longer lifespan and lower maintenance costs.
Cost-Effective
The durability and low maintenance of metal trusses lead to reduced long-term costs compared to traditional buildings. Additionally, their prefabricated design speeds up installation, lowers labor expenses, and minimizes project delays, to further enhance cost efficiency over time.
Fire Resistance
Incombustible aluminum or steel enhances the safety of metal roof truss structures compared to traditional wooden designs. In addition to reducing the risk of fire-related damage, this characteristic can lead to lower insurance premiums and compliance with stricter building codes.
Environmental Resistance
Metal roof trusses are built to withstand harsh weather, including heavy winds and snow loads. Their structural integrity ensures stability under extreme forces, while their ability to remain intact reduces the risk of structural failure compared to traditional materials.
Trusted By 50+ Brands
Metal Truss Specification
| Tent Type | Triangle Spogit Truss | Square Spogit Truss | Track Truss | Folding Truss | Rectangular Truss | Plane Truss |
|---|---|---|---|---|---|---|
| Main Material | Aluminum Alloy | Galvanized Steel | ||||
| Span(m) | 10-16 | 10-20 | 10-18 | 10-36 | 10-60 | 20-70 |
| Height | 290 mm | 530 mm | 355.6 mm | 580 mm | 610 - 1450 mm | 610 - 1450 mm |
| Width | 290 mm | 530 mm | 609.6 mm | 1010 mm | 410 - 770mm | 410 - 770mm |
| Weight | ~7.5 kg/m | ~13,5kg/m | ~18 kg/m | ~22 kg/m | ~16 - 65 kg/m | ~16 - 65 kg/m |
| Pin Position | Diagonal | Diagonal | Diagonal | Diagonal | Diagonal | Diagonal |
| Main Tube | 50*2 mm | 50*4 mm | 50.8*3.2 mm | 50*4 mm | 50*4 - 100*8 mm | 50*4 - 100*8 mm |
| Braces | 20*2 mm | 30*3 mm | 25.4*3.2 mm | 30*3 mm | 50*4 mm | 50*4 mm |
| Materials |
|
| Color | Original Color/ White Coating/ Black Coating |
| Max Wind Load | 120 km/h |
| Max Snow Load | 0.5kN/sqm |
| Features |
|
| Materials | High-Strength PVC Coated Fabric |
| Available Options | 850GSM Opaque PVC/ 950GSM Transparent PVC/ 1050GSM PVC |
| Tent Top Color | White/ Transparent/ Customized Color |
| Light Transmittance | Full Shading / Semi-Shading / Full Transparency |
| UV-Coated | Yes |
| Waterproof | Yes |
| Fire Retardance | Meet international fire safety standards (DIN4102: B1/ M2) |
| Accessories | Available Options |
|---|---|
| Sidewall |
|
| Door |
|
| Window & Vertilation | Glass Awning Window/ Glass Sliding Window/ Glass Double Casement Window/ Roll-up Window/ Extractor Fan |
| Flooring System | Standard Flooring System/ Stage Flooring System |
What Are the Advantages of Metal Truss?
Ensure Long Lifespan and Durability
While the initial cost of metal trusses may be higher than traditional wood trusses, they are often more cost-effective in the long run. Their durability and resistance to issues like warping, rotting, and pest infestation reduce the need for repairs. Additionally, metal trusses require less maintenance, offering further savings for homeowners and builders.
Minimize Installation Time
Prefabricated and preassembled in the factory, metal trusses can be easy and quick to install on the site. With simple splicing and fastening, a stable large-span metal truss can be installed to provide great structure support. This effectively saves lots of time and cost of installation.
Cost-effective Investment
The precision manufacturing of metal trusses enables greater accuracy in production. This results in fewer off-cuts and excess materials compared to traditional building methods. This meticulous approach not only conserves resources but also streamlines the construction process, which ultimately contributes to more sustainable building practices and lowering overall project costs.
Protect the Environment and Sustainable
The recyclability of metal materials is vital for sustainable construction. Utilizing recycled steel and aluminum alloys reduces environmental impact by conserving resources and minimizing waste. The recycling process requires up to 75% less energy compared to producing new materials from raw materials, leading to a substantial decrease in greenhouse gas emissions.

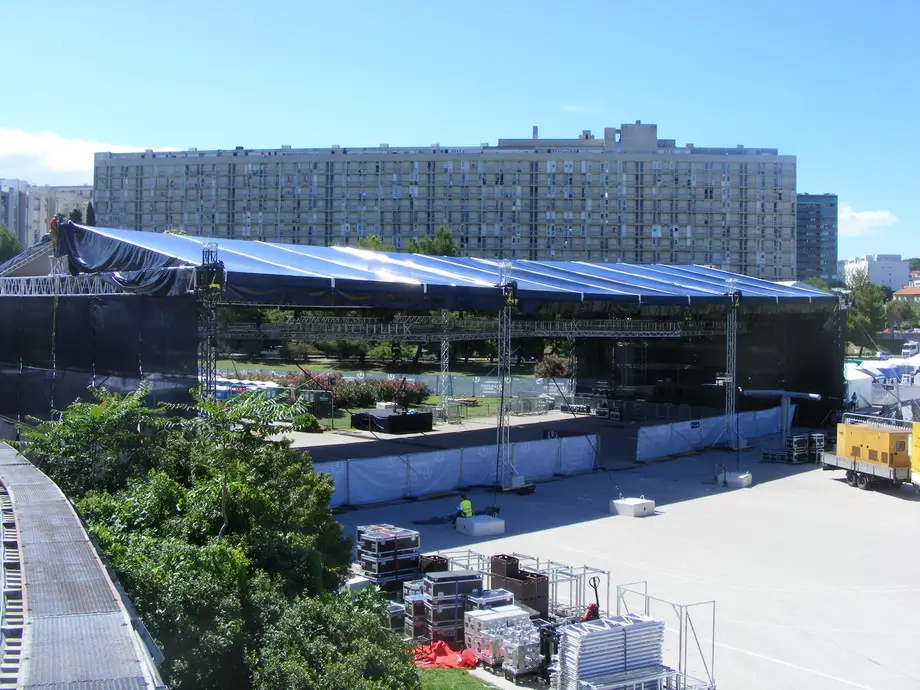

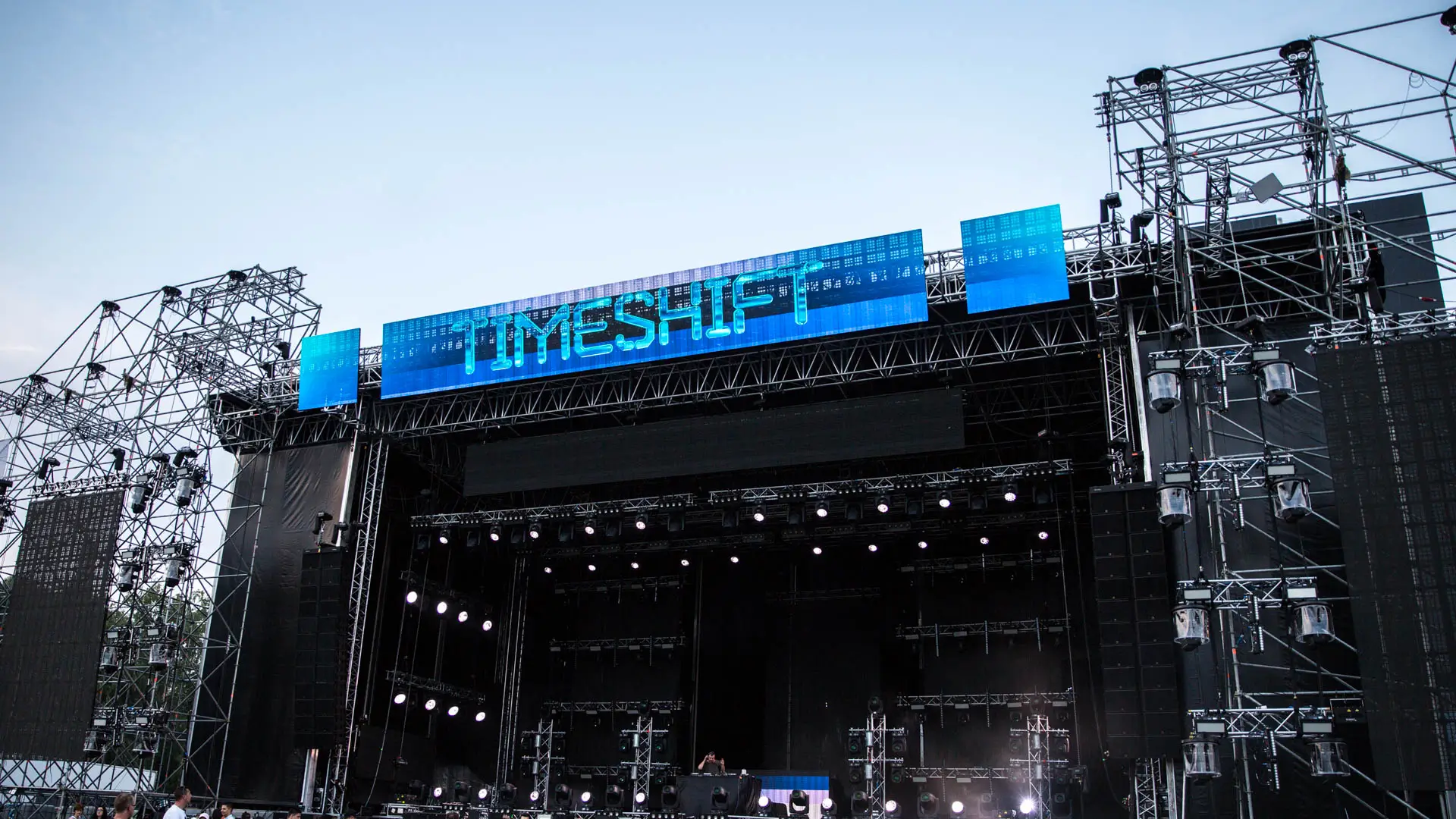

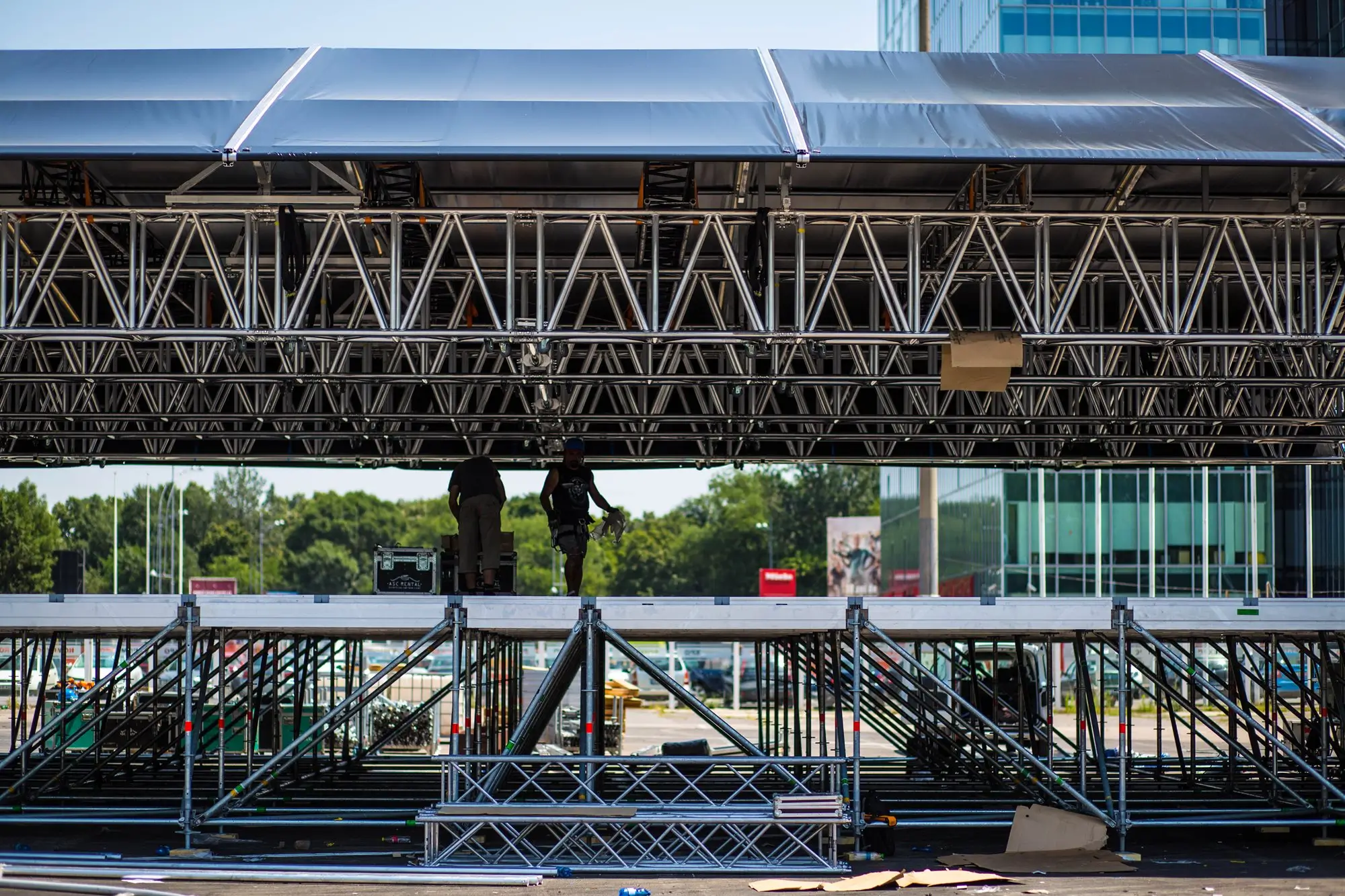

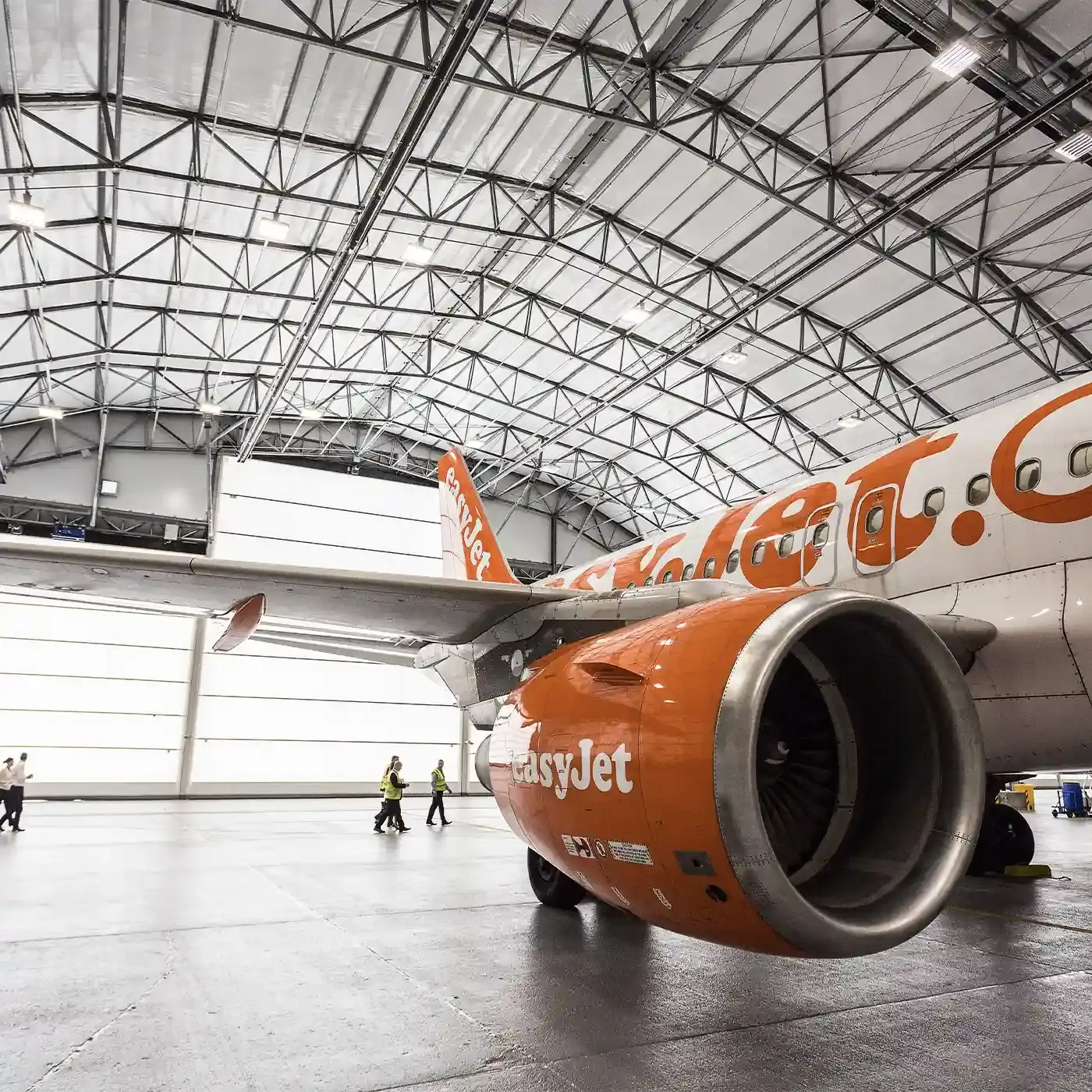

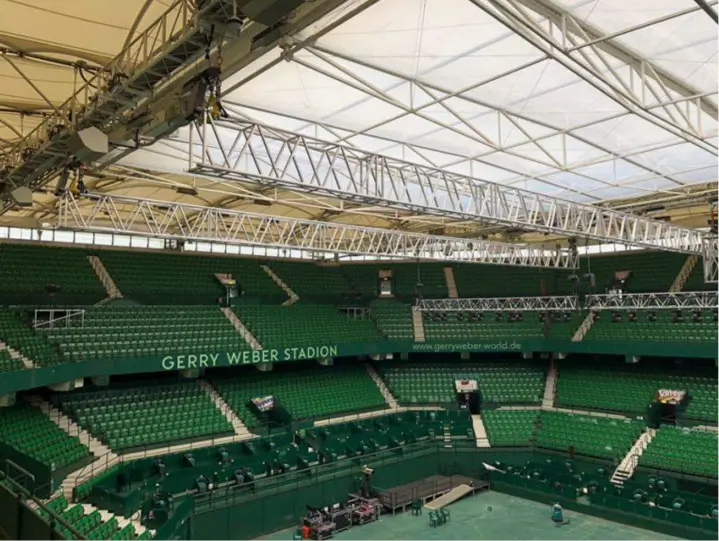

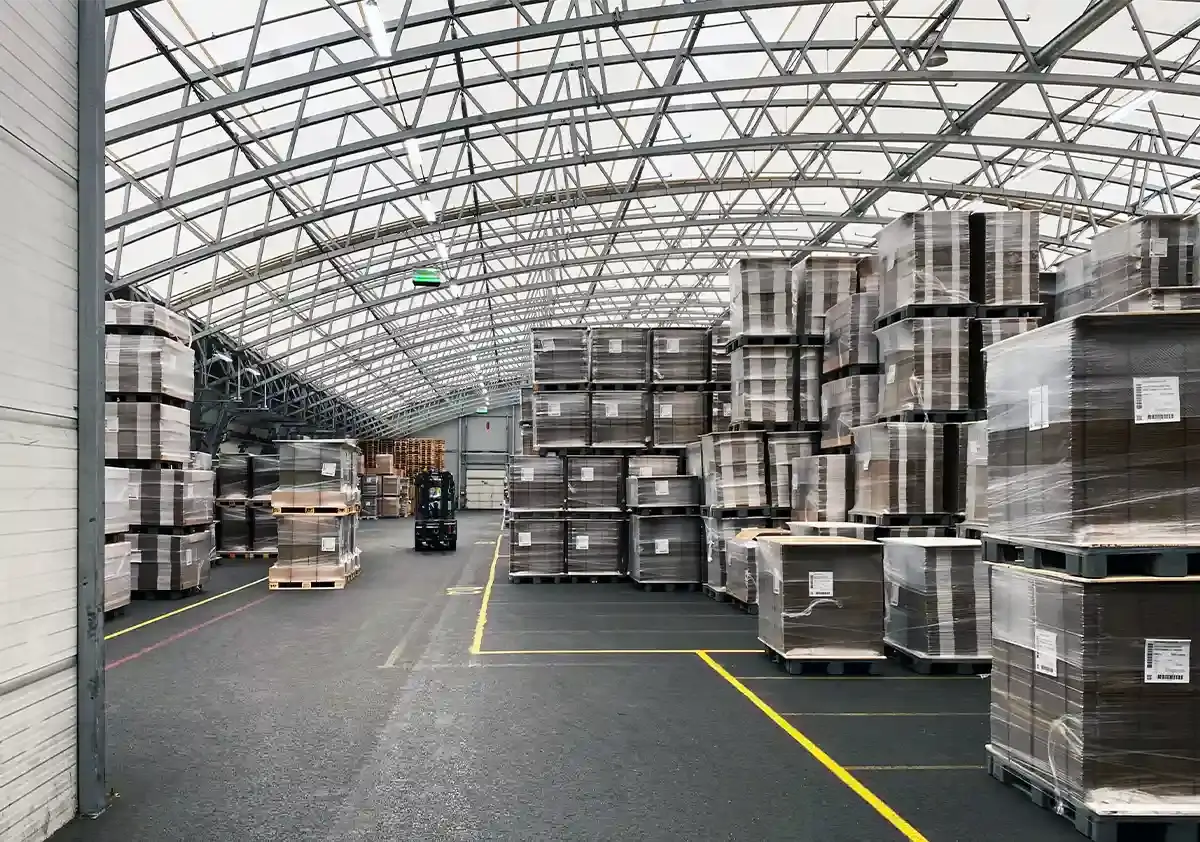

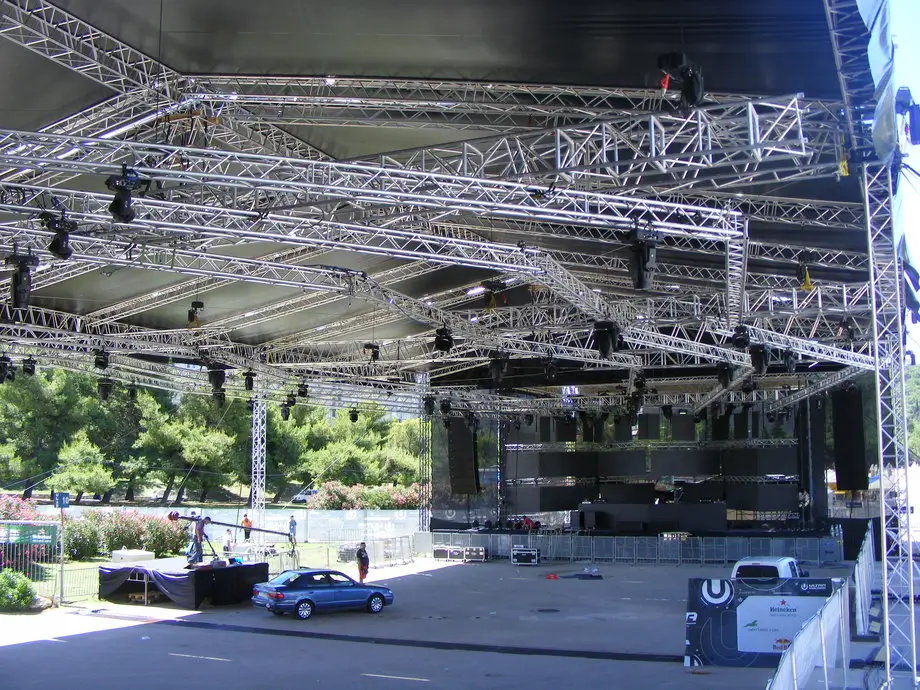

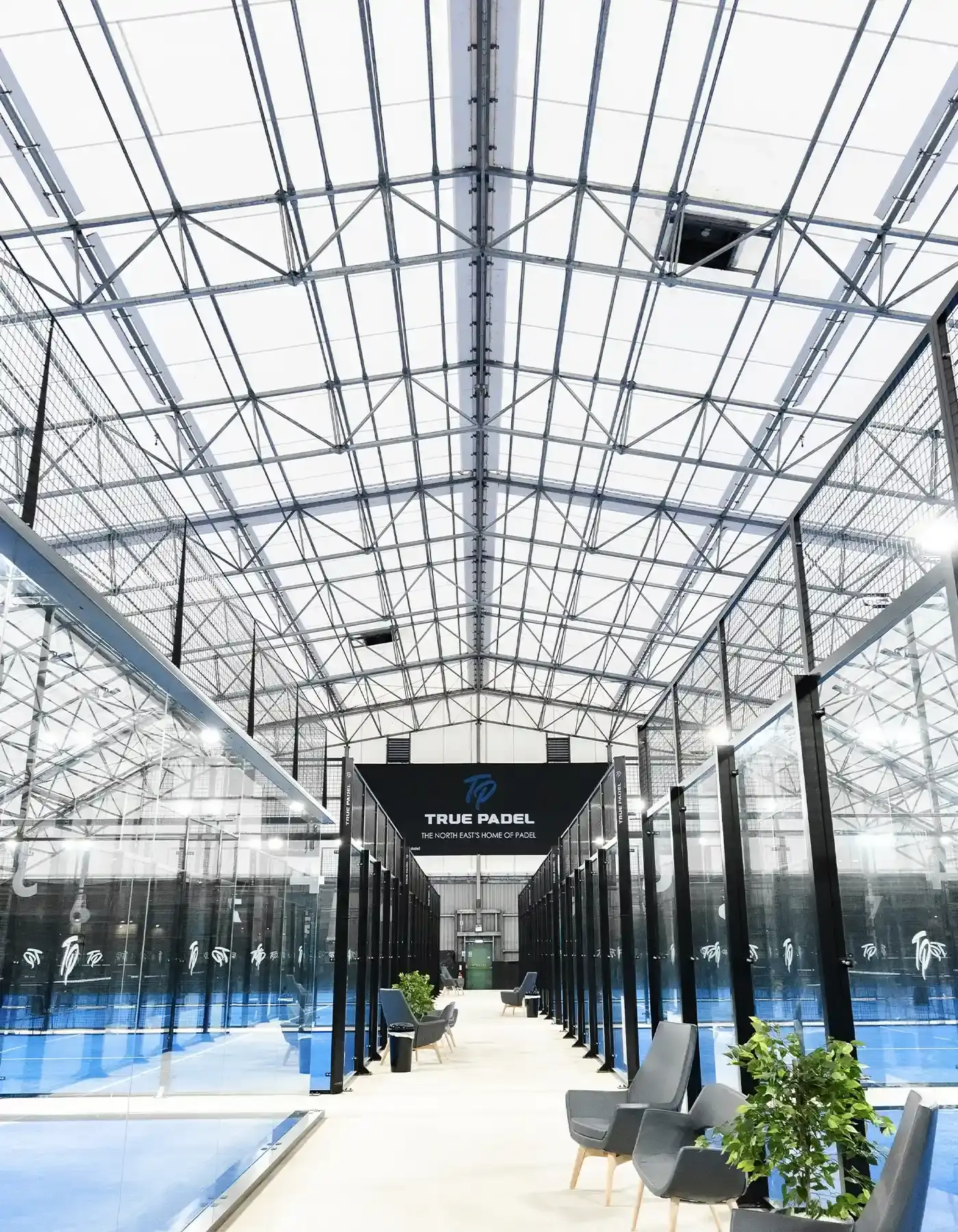

Common Applications of Metal Truss
Shelter Structures' VS Regular Metal Truss
| Shelter Structures | Others | |
|---|---|---|
| Main Material | 6061-T6 Aluminum Alloy Frame/ Q235B Steel Frame, PVC Fabric | Steel Frame, PVC Fabric |
| Customization Options | High | Medium to High |
| Wind Resistance | Up to 120km/h | Up to 100km/h |
| Snow Load Capacity | Medium to High | Medium |
| Cost | Competitive | Premium |
| Lifespan | 15-20 Years(Frame), 5 Years (PVC) | 8-10 Years(Frame), 3 Years (PVC) |
Discover the Charm of Our Metal Truss
Join Our Happy Customers

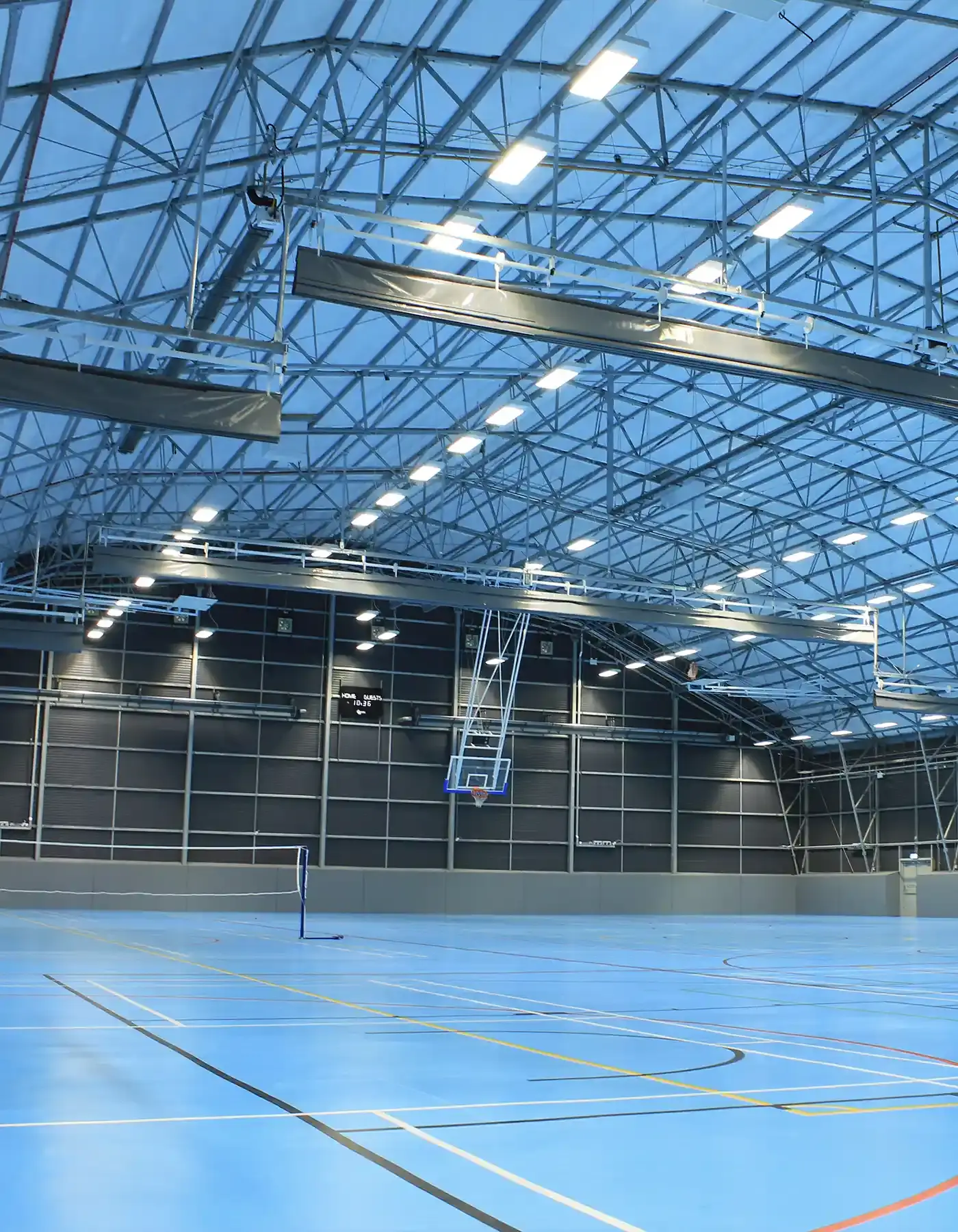

We bought this metal truss system to support the roof of our sports court. The truss offers great and strong support for the roof. It is made from a galvanized steel frame and prefabricated in the factory. Thus, as long as we receive the components, we spend 1 week to install the system. It is very convenient and saves us lots of time.
