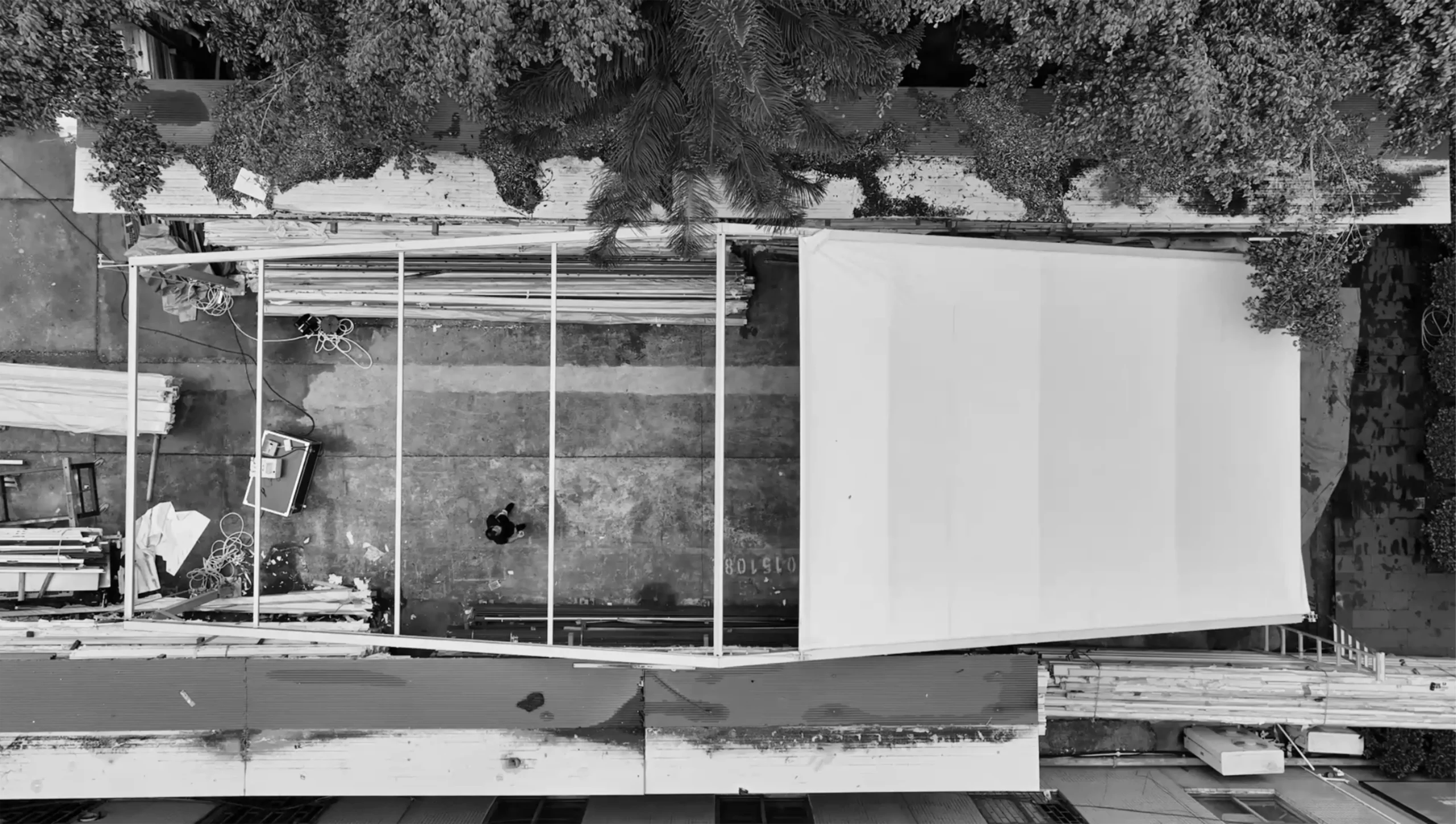

Fabric Pulling Machine for Ease of Installation
Providing a powerful and efficient solution for large-scale fabric installation, the fabric pulling machine is quite user-friendly and reliable.
Features of Fabric Pulling Machine
Fabric Supporting System
Designed specifically for large tents, fabric pulling machines can pull up to 50 meters of fabric and withstand forces of up to 150 kg. It also allows for flexible adjustment of the pulling speed to prevent damage or overstretching of the fabric.
Long-Distance Control
The fabric pulling machine is equipped with a remote control with an effective range of up to 100 meters, allowing convenient operation from a distance.
Automatization
The automatic fabric pulling machine significantly reduces labor and time costs, making the installation process simple and fast. During operation, only 2 to 3 people are needed to pull the roof panel and then press the button. Finally, the roof panel can be automatically pulled into place.
High-Quality Motor
High-quality motors are essential for the longevity of the machine, and we prioritize this aspect. The motor is 0.75 kW, which provides high performance and stronger power to operate the machine.
Complete and Exquisite Components
We offer the fabric clamping device and the fabric pulling rod connection device to prevent any wear and tear during installation. This helps to minimize the potential risk of damage to the fabric.
Strong Compatibility
The voltage and frequency of our fabric pulling machine can be adjusted to meet the specifications of any region in the world, making it universally compatible. You don’t have to worry about whether the machine is suitable for your location.
Trusted By 50+ Brands
Learn about Fabric Pulling Machine
This advanced fabric pulling machine is designed to pull tent tops on all types of tent structures. When you need to set up a tent, a fabric pulling machine can be a real asset in helping you get the job done quickly and effectively.
Main Unit
This is the core component of the machine. The hanging device operates via "L"-shaped clamping plates that fit into the groove of the profile, controlled by turning the handle. To install, loosen the clamps, align the "L"-shaped side plate with the groove, and tighten to secure.
Rope Pressing Device
This device is used to fix the main unit to the rope. Lift the pin, raise the pressing wheel to create space, insert the rope into the flywheel groove through the mounting plates, place the rope into the rope pin, and lower the pin to fasten the rope. Afterward, lock it in place with the handle pin.
Support Top Wheel Device
This device includes the top wheel and axle, telescopic support rod, and hanging device. The hanging device functions identically to the one on the main unit. To adjust the length of the telescopic rod, remove the pin and bolt, then slide the sections to the desired length.
Fabric Clamping Device
The fabric clamping device is an integral part of the automatic fabric pulling machine, which is essential for securing the fabric edge as it's being pulled. It's designed to hold the fabric firmly in position so that it does not slip or move during the pulling process.
Fabric Pulling Rod Connection Device
This device spans the pulling rod between two diagonal beams and supports it with wheels to minimize friction. To install, press down the bead of the V-shaped spring clip and insert it into the canvas' pulling rod.
Electrical Control Cabinet
This device spans the pulling rod between two diagonal beams and supports it with wheels to minimize friction. To install, press down the bead of the V-shaped spring clip and insert it into the canvas' pulling rod.
Remote Control
This is a key component of the automatic fabric pulling machine, allowing the operator to control the machine from a distance, enhancing safety and convenience. And buttons of the remote control are interlocked to prevent simultaneous conflicting commands.
What Should We Be Aware of During Installation?
TOPIC 1
Use Designated Machine Rope
Always use the specific rope designed for the fabric pulling machine. Replacing it with another type can compromise performance and safety. Regularly inspect the rope for signs of wear and contact your supplier for replacements if needed.
TOPIC 2
Ensure Dry and Ventilated Storage
Store the fabric pulling machine in a dry, well-ventilated area. If the machine comes into contact with moisture or rain, dry it immediately to prevent potential damage from rust or electrical issues.
TOPIC 3
Regularly Check Remote Control Batteries
Replace the batteries in the remote control every 3 to 5 months. This will ensure uninterrupted operation and help prevent potential issues during critical installation moments.
TOPIC 4
Monitor Pulley System Cleanliness
Periodically inspect and clean the pulleys and threading mechanisms. Debris accumulation can lead to jamming or reduced performance of the suspension system, affecting fabric handling precision.
TOPIC 5
Avoid Modifications Without Approval
Refrain from altering the fabric pulling machine’s components, including clamps, pulleys, or electronics, without consulting technical support. Unauthorized modifications may affect machine stability and void warranties.
TOPIC 6
Conduct Routine Safety Inspections
Regularly check all moving parts, clamps, and fabric holders for proper alignment and operation. This ensures the equipment maintains optimal performance and helps mitigate potential safety risks.
Shelter Structures' VS Regular Tents
| Shelter Structures | Others | |
|---|---|---|
| Main Material | 6061-T6 Aluminum Alloy Frame, PVC Fabric | Anodized Aluminum Frame, PVC Fabric |
| Customization Options | High | Medium to High |
| Wind Resistance | Up to 120km/h | Up to 100km/h |
| Snow Load Capacity | Medium to High | Medium |
| Cost | Competitive | Premium |
| Lifespan | 20 Years(Frame), 5 Years (PVC) | 10 Years(Frame), 3 Years (PVC) |
Discover the Charm of Our Tents
Join Our Happy Customers
Very pleased with this fabric pulling machine. It has greatly improved the efficiency of our awning production and can spread the tarp evenly. In operation, it keeps the tarpaulin flat and even tension, makes the cutting precise, reduces material waste, and ensures the quality of the awning, which is a powerful assistant in production.
Customer from the USA
FAQs of Fabric Pulling Machine
What Kind of Maintenance Is Recommended for the Fabric Pulling Machine?
Regular maintenance tasks include checking the pulling ropes for wear and tear, replacing the remote control batteries every 3-5 months, inspecting the equipment’s paintwork for damage and maintaining it to prevent rusting, and cleaning impurities from the threads of the bolts to avoid jams.
What Can Be Done to Improve the Efficiency of a Fabric Pulling Machine?
Methods to improve efficiency include optimizing workflow, training employees to use the equipment correctly, keeping the machine in good condition, and avoiding downtime by performing regular maintenance
What Are Common Malfunctions And What Are the Solutions?
The following are some common faults and their corresponding solutions. We hope it helps you if you encounter problems when using the Fabric Pulling Machine.
- If the current monitoring light on the control cabinet does not illuminate when plugged in, open the cabinet door to check if the air switch inside is off.
- If the buttons on the remote control do not work and the indicator light does not come on, check the battery.
- If the remote control has power but the motor does not run, check if there is a malfunction in the inverter inside the control box. If there is a malfunction, long-press the ESC button to reset.
How Should the Fabric Pulling Machine Be Transported?
During transportation, the machine must be placed in the special box provided by the manufacturer and should not be compressed or come into contact with sharp objects to avoid damage.
