A-frame Clear Span Tent Buildings for Innovative Outdoor Solution
Spacious and unobstructed interior with no central supports. A-frame tents offer maximum flexibility and use of space for large events and storage.
Features of Shelter Structures' A-frame Tent
Maximum Span: 70m
With a maximum span of 70 meters, the interior space is spacious enough to handle any occasion. A-frame clear span tent buildings also allow for more layout options, enhancing versatility and functionality of use. So it is very suitable for large gatherings or storage.
High Strength Structure
Using an aluminum alloy structure, A-frame tents have excellent robustness and durability. The corrosion resistance and high strength of the aluminum alloy ensure that these clear span buildings are not easily deformed or damaged during long-term use.
Weather Resistance
A-frame tents excel in weather resistance with their sloped roof design. This deflects wind and prevents snow buildup and reduces structural stress. Made from waterproof and UV-resistant PVC cover, these clear span buildings protect against rainfall and sun damage.
Unobstructed Space
The interior space is large. Equipment can be arranged with maximum flexibility, making the A-frame tent an ideal place for events and storage. The open layout enhances usability and ensures a clear, spacious environment that accommodates a variety of activities without restriction.
Flexible Expansion
A-frame tents provide flexible expansion options thanks to their modular design. Extension units can be added or connected to increase space as needed, accommodating larger events or evolving requirements.
Versatile
Adaptable to various terrains, A-frame tents are suitable for storage, events, and other scenarios. It is also suitable for different climatic conditions because its structure can withstand wind and snow and keep the interior warm.
Trusted By 50+ Brands
A-frame Tents Specification
| Series | Span (m) | Eave Height (m) | Bay Distance (m) | Length | Main Profile(mm) | Max Wind Load |
|---|---|---|---|---|---|---|
| S Series | 3-12 | 2.6 | 3.0 | Expands unlimitedly in 3m increments | 48*84 | Up to 120 km/h |
| G Series | 6-15 | 3.0 | 3.0 | Expands unlimitedly in 3m increments | 48*120 | |
| M Series | 10-30 | 4.0/6.0 | 5.0 | Expands unlimitedly in 5m increments | 88*166/ 112*203/ 120*200/ 120*250 | |
| L Series | 30-70 | 4.0/6.0 | 5.0 | Expands unlimitedly in 5m increments | 120*300/ 120*350/ 120*400 |
| Materials |
|
| Color | Original Color/ White Coating/ Black Coating |
| Max Wind Load | 120 km/h |
| Max Snow Load | 0.5kN/sqm |
| Features |
|
| Materials |
|
| Available Options | 850GSM Opaque PVC/ 950GSM Transparent PVC/ 1050GSM PVC |
| Tent Top Color | White/ Transparent/ Customized Color |
| Light Transmittance | Full Shading / Semi-Shading / Full Transparency |
| UV-Coated | Yes |
| Waterproof | Yes |
| Fire Retardance | Meet international fire safety standards (DIN4102: B1/ M2) |
| Accessories | Available Options |
|---|---|
| Sidewall |
|
| Door |
|
| Window & Vertilation | Glass Awning Window/ Glass Sliding Window/ Glass Double Casement Window/ Roll-up Window/ Extractor Fan |
| Flooring System | Standard Flooring System/ Stage Flooring System |
Why to Choose Shelter Structures' A-frame Tent?
Economic Viability
Long-term Investment: Due to their durability and flexibility, A-frame clear-span buildings are a long-term investment that can reduce the cost of frequent replacement.
Save Venue Costs: Suitable for occasions that require large area coverage. It costs less than traditional buildings. The land and construction cost less than traditional buildings.
Comfort Environment
Good Ventilation: Modern clear span buildings are usually designed with ventilation openings to enhance air circulation, reduce internal temperature, and improve comfort.
Air Conditioning & Heating Systems: Tents can be equipped with air conditioning and heating systems. These ensure indoor air circulation and a suitable temperature. So tents can be used all year round.
Weather Resistance
High-quality Tarpaulin: A-frame tents usually use waterproof and wear-resistant high-quality tarpaulin (such as PVC), which can effectively protect the internal environment from weather conditions.
Drainage Design: The sloping design of the A-frame structure effectively prevents rainwater accumulation and ensures that the interior of the tent remains dry.
Easy Installation and Disassembly
Modular Design: Clear span buildings usually adopt modular design. These components can be quickly assembled and disassembled, saving time and labor.
Convenient Transportation:Due to its modular nature, the disassembled components have a small volume, making them easy to transport and store.

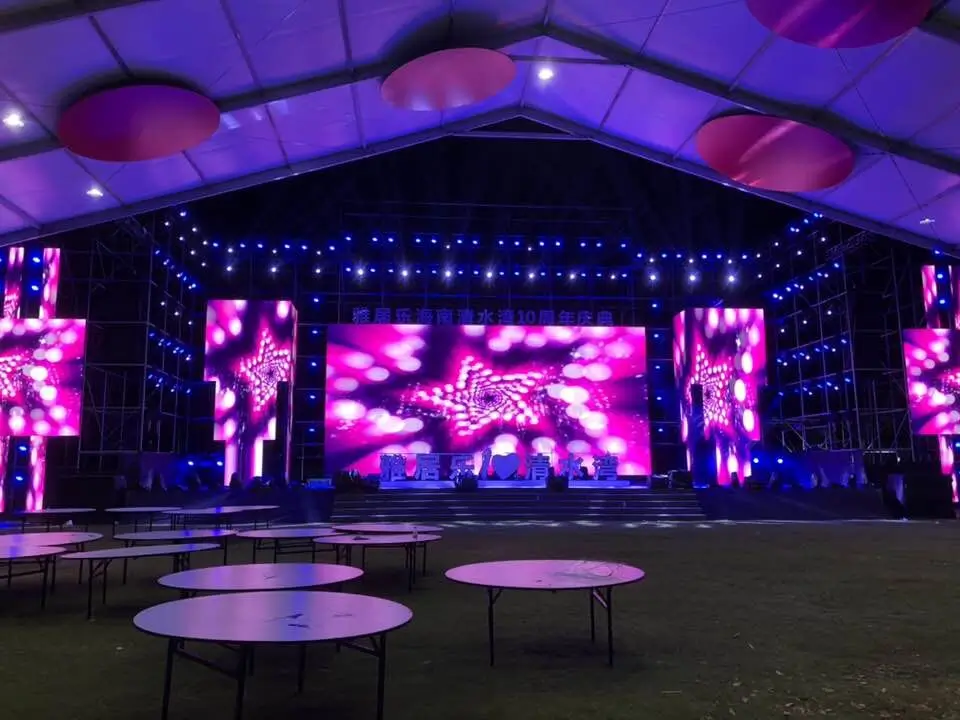

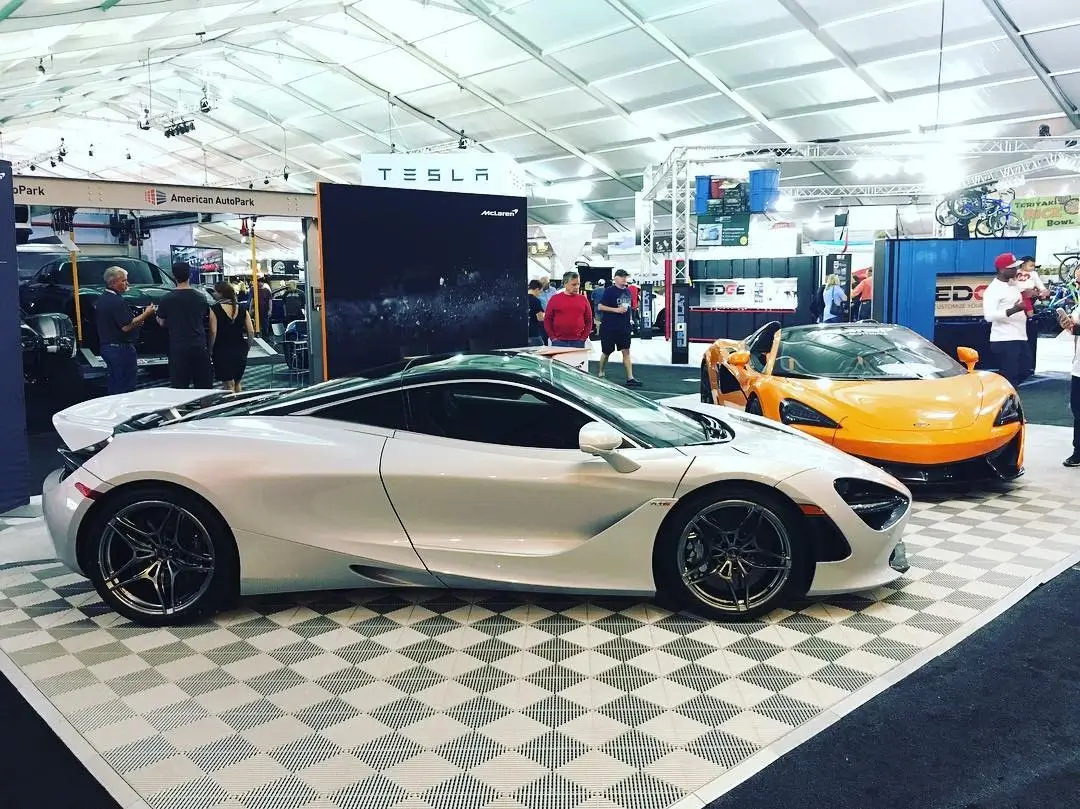

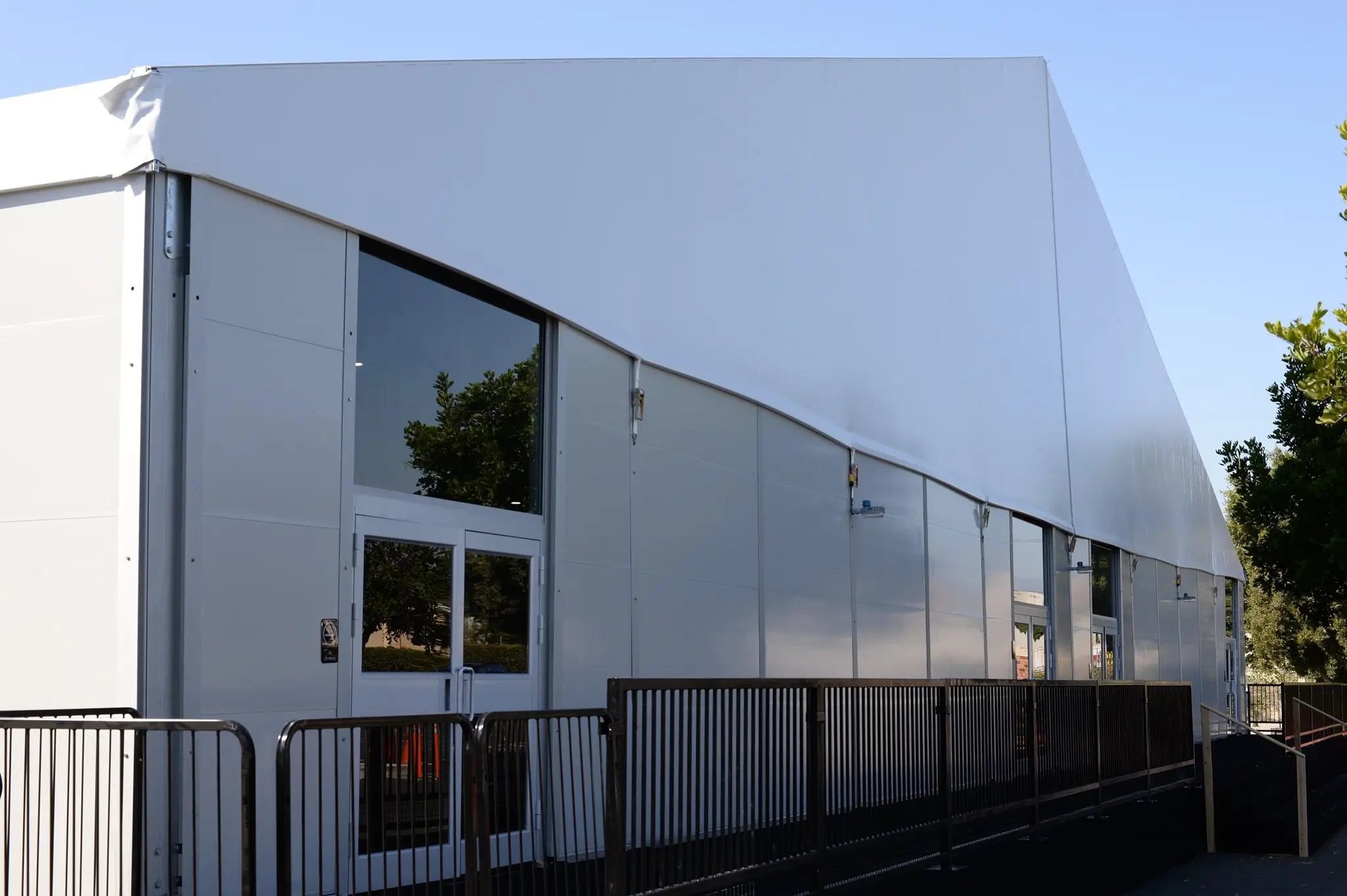

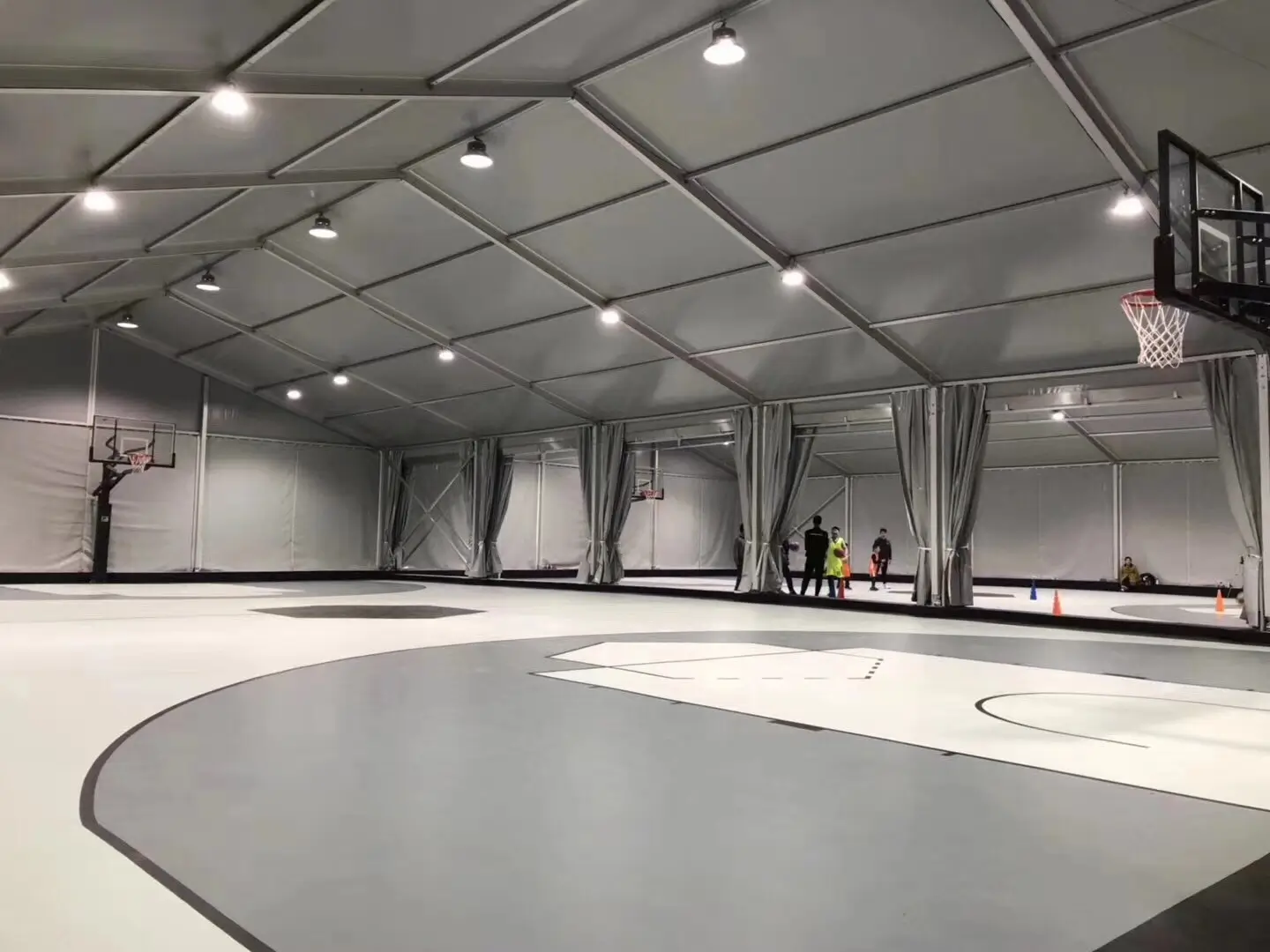

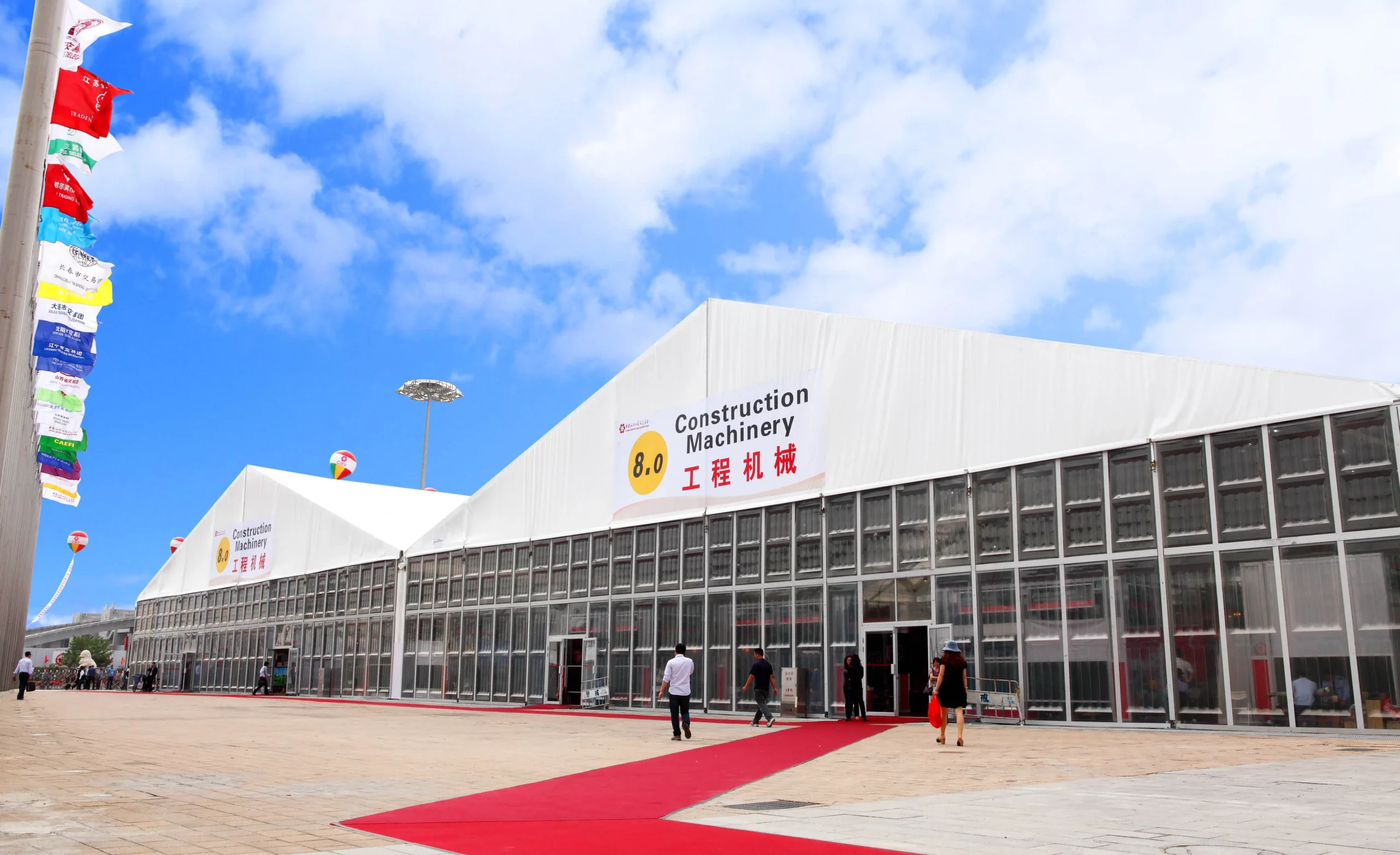

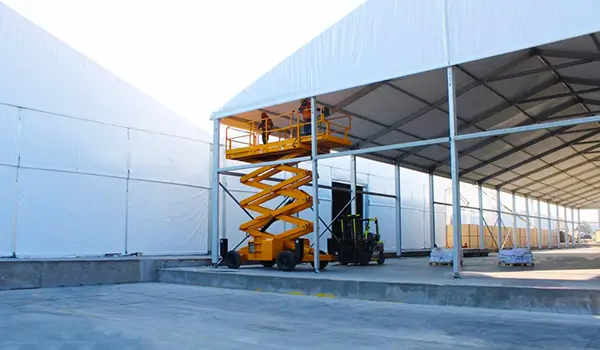

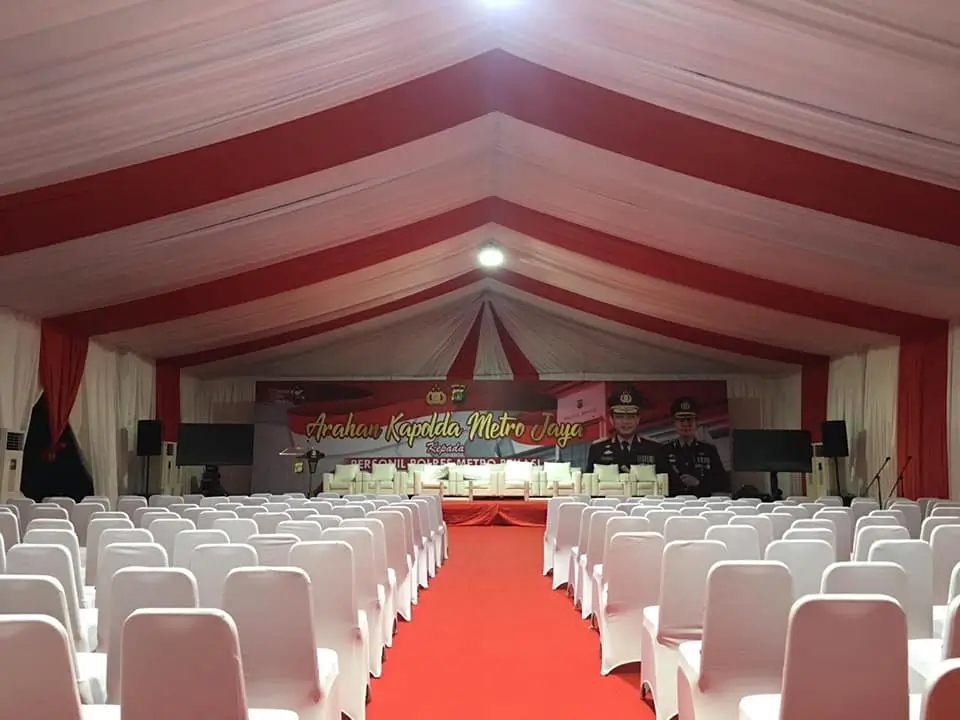

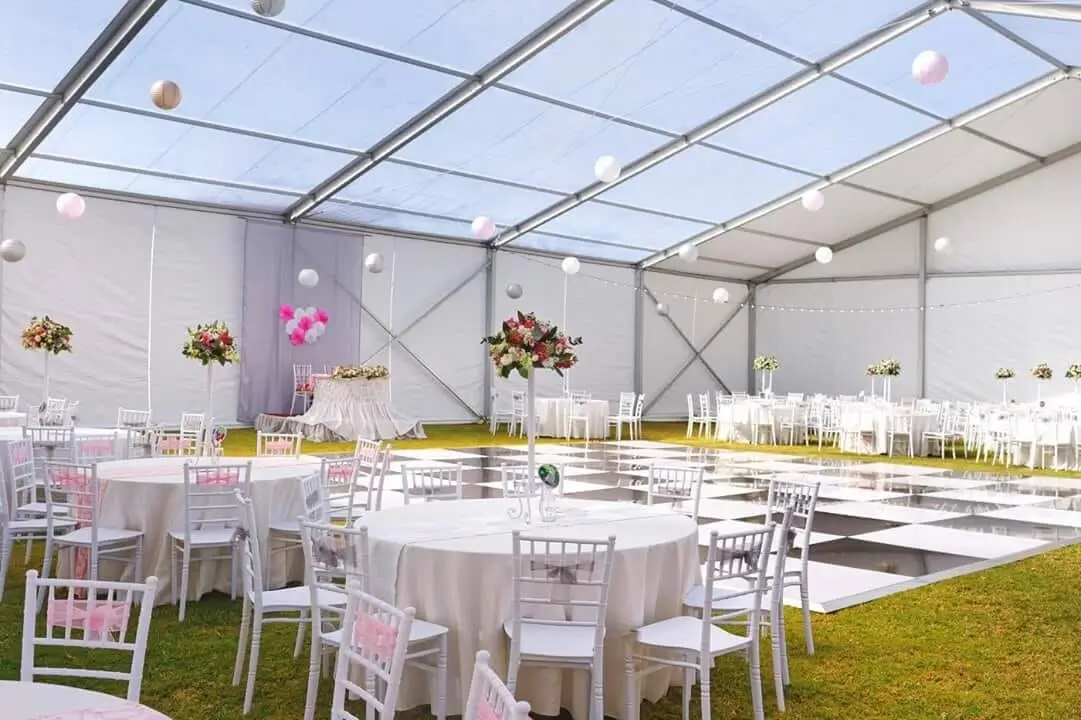

Common Applications of A-frame Tent
Shelter Structures' VS Regular A-frame Tent
| Shelter Structures | Others | |
|---|---|---|
| Main Material | 6061-T6 Aluminum Alloy Frame, PVC Fabric | Anodized Aluminum, PVC Fabric |
| Customization Options | High | Medium to High |
| Wind Resistance | Up to 120km/h | Up to 100km/h |
| Snow Load Capacity | Medium to High | Medium |
| Cost | Competitive | Premium |
| Lifespan | 20 Years(Frame), 5 Years (PVC) | 10 Years(Frame), 3 Years (PVC) |
Discover the Charm of Our A-frame Tent
Join Our Happy Customers
The A-frame clear span tent is of very good quality, with high configuration, easy to build, suitable for local weather, and beautiful appearance. It is very suitable for weddings and events and is well received by local guests.
FAQs of A-frame Tent
Is the Installation Process of A-Frame Tent Complicated?
What Type of Activity or Purpose Is A-frame Tent Suitable for？
The A-framed full-span building’s spacious, unobstructed interior and sturdy structure make it ideal for a variety of events and uses. Such as weddings and festivals, trade shows, temporary storage, and emergency shelters. The modular design makes them suitable for both short-term and semi-permanent uses.
